Tree House

PROJECT TYPE: Recreational Building
CLIENT: Undisclosed
SIZE: 11,00  sq m
LOCATION: Carapinheira, Portugal
STATUS: Ongoing
YEAR: 2016

Tree House_3D_cezark
The tree house, is a ephemeral construction, reduced in size and experimental.

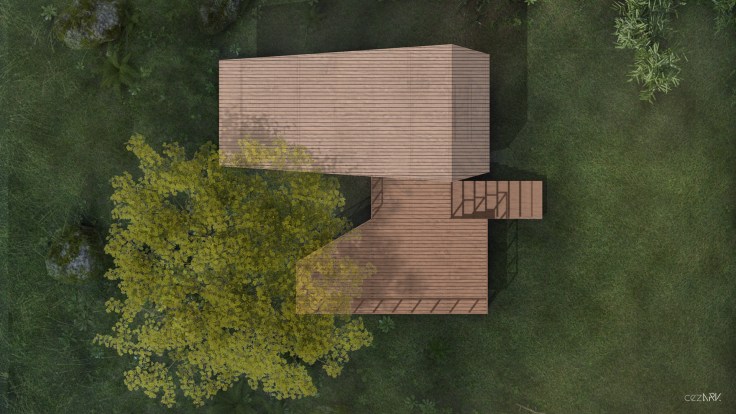

Tree House_Imp_cezark

The project aims to provide outdoor entertainment for two children. Located near the main house, the tree house was requested initially to be built using an existing tree as its main support. Due to the small port of the tree a different approach needed to be taken. It was then decided that instead of the tree being part of the house it would interact with it, as its center, and the house would evolve around it, in a “U” form.

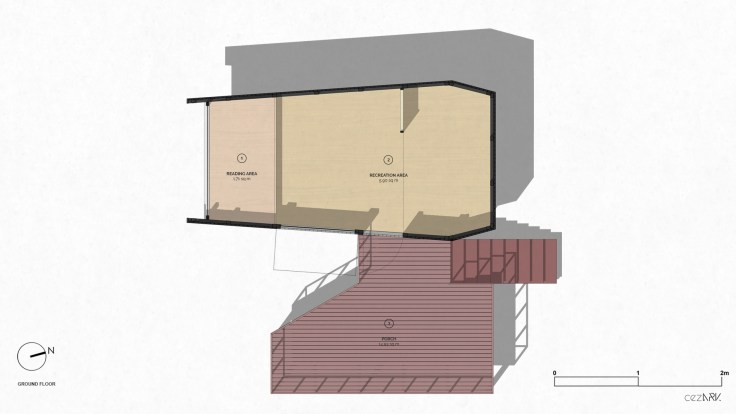

05. Tree House_Level01

05. Tree House_Level02

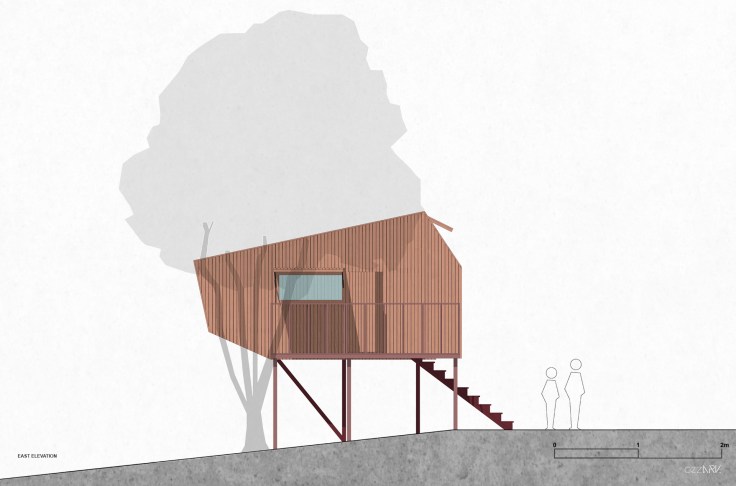

05. Tree House_Elevation



Considering the shad created by the tree during the day and the surrounding trail, a porch would be integrated. The children would be able to play outside freely because the house would act as a visual barrier. Window openings would also be controlled and oriented to the nearby forest.

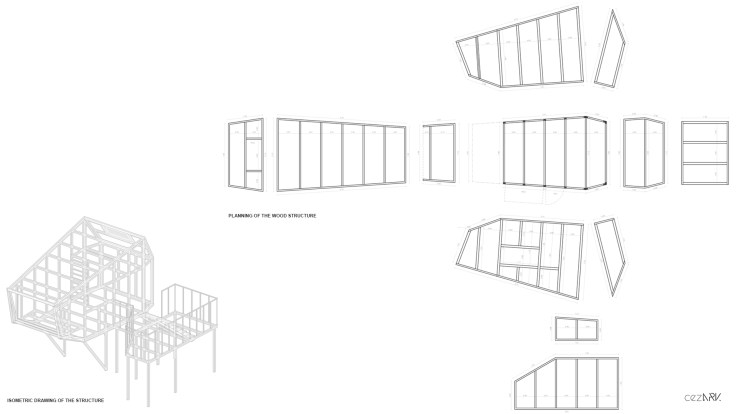

05. Tree House_Structure



The program is simple, a recreation area, reading and sleeping space. In order to create a unique atmosphere, a “child´s world”, the house is to be elevated by wooden columns above the ground where the interior floor and porch would be on the same level  all part of the recreation area, and a extra floor would be added to provide sleeping space. In between, with the hight of a step, the reading area was inserted, near the main window opening, that funnels the view to the landscape. Nature played the key role of the modulation of the construction, it creates the visual possibilities of the openings defined the form.

05. Tree House_Section.jpg

The constructed is in wood. The structural frames are cut in a carpentry workshop and them mounted on location. The exterior finishing is with vertical wooden planks.

09. Tree House_Photo02_©cezark.jpg

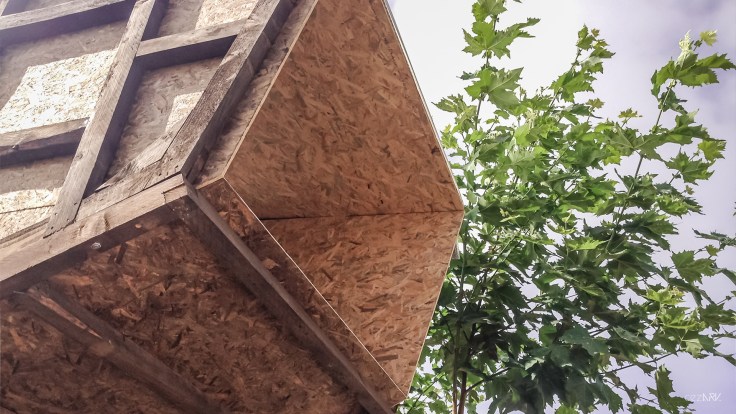

08. Tree House_Photo01_©cezark
